Balboa VL701s 7 button Topside - p/n: 54112-02

p/n:51057 - Balboa..7 button Topside control - VL701s..M7 & GS System ..'RJ' plug

p/n:51057 - Balboa..7 button Topside control - VL701s..M7 & GS System ..'RJ' plug

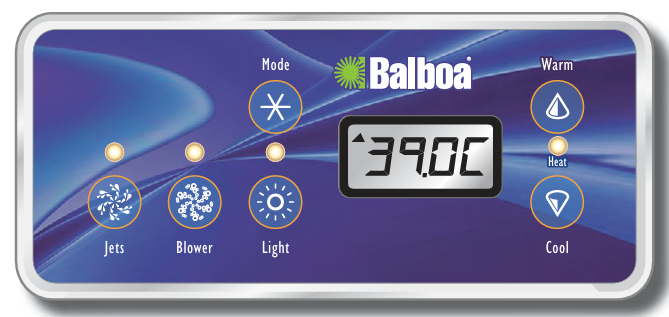

The VL701S keypad is compatible with the Balboa GS501SZ, GS510SZ, GS511SZ and GS520SZ control systems. This is a very common keypad, with seven buttons in its standard configuration:

• Blower
• Mode
• Jets 1
• Jets 2
• Light
• Warm
• Cool

If you need the keypad in a different configuration, all you need to do is peel off the self-adhesive overlay and stick another one in its place. We offer several different overlays for this keypad, with either six or seven buttons, as well as versions that are specific to Saratoga Spa hot tubs.

Dimensions
Keypad: 188 x 84 mm
Cut out area: 165 x 56 mm
Cable: 2 m

Compatibility
GS501SZ, GS510SZ, GS511SZ, GS514SZ and GS520SZ

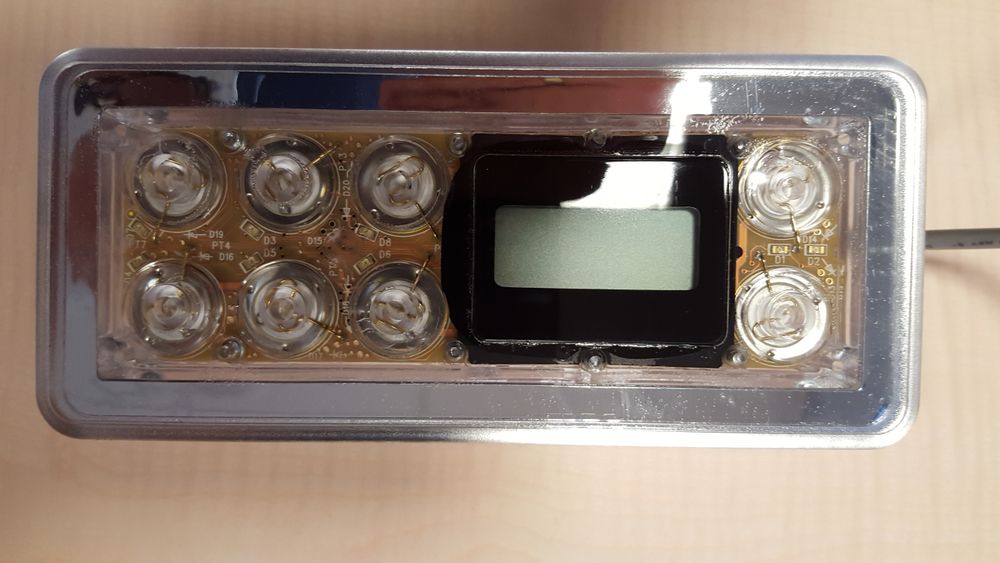

The plug is in the style of RJ45 ethernet plugs (see the photo).

Warranty
2-year Tubs Parts warranty

Balboa part numbers

p/n:51057 - Balboa..7 button Topside control - VL701s..M7 & GS System ..'RJ'
