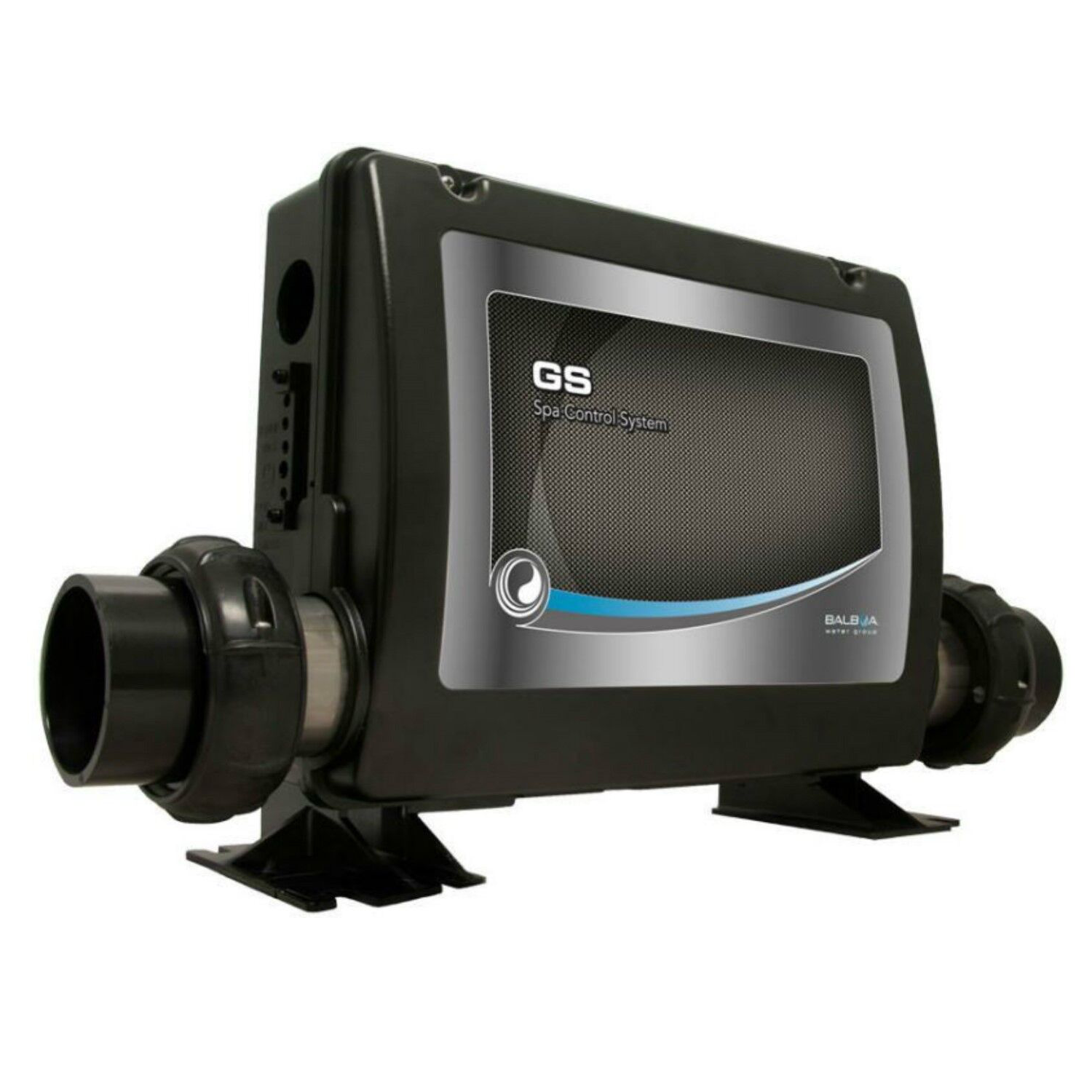

Balboa CPGS501z Control pack

Compatible Canadian Spa Topside Controls

VL200 4 button and 3 Button

VL260

4 botton

VL404 3 button

VL404 2 button

 Mode 501Z  Tech sheet
 Depending on system configuration, mode changing may
not be available and will be locked in Standard Mode.
 Mode is changed by pressing  Temp, then Light.

 STANDARD Mode maintains set temperature.
 will be displayed momentarily when you switch into Standard Mode.

 ECONOMY Mode heats the spa to the set temperature
only during filter cycles.  will display when water temp is not current, and will alternate with water temp when the pump is running.

SLEEP Mode heats the spa to within 10°C/20°F of the set temperature only during filter cycles.  will display when water temp is not current, and will alt

Runs 1-pump plus blower or 2-pumps.
Ref 55446
P/N 803-1

Fitted in many older spa models including:

• Yukon
• Toronto
• Winnipeg
• Halifax
• Montreal
• Thunder Bay
• Quebec
