BP 600 /2100 series Balboa Heater with Molex Plug (M7) Plug 'n' Click 2KW / 3KW / 5.5KW

BP 600 /2100 series Balboa Heater with

Molex Plug (M7)  Plug 'n' Click

2KW / 3KW / 5.5KW

This heater suits BP packs (except BP100/200). With M7 sensors and studs to fit plastic box packs. Available 2KW, 3KW and 5.5KW.

This heater does NOT fit BP100 or BP 200 packs.

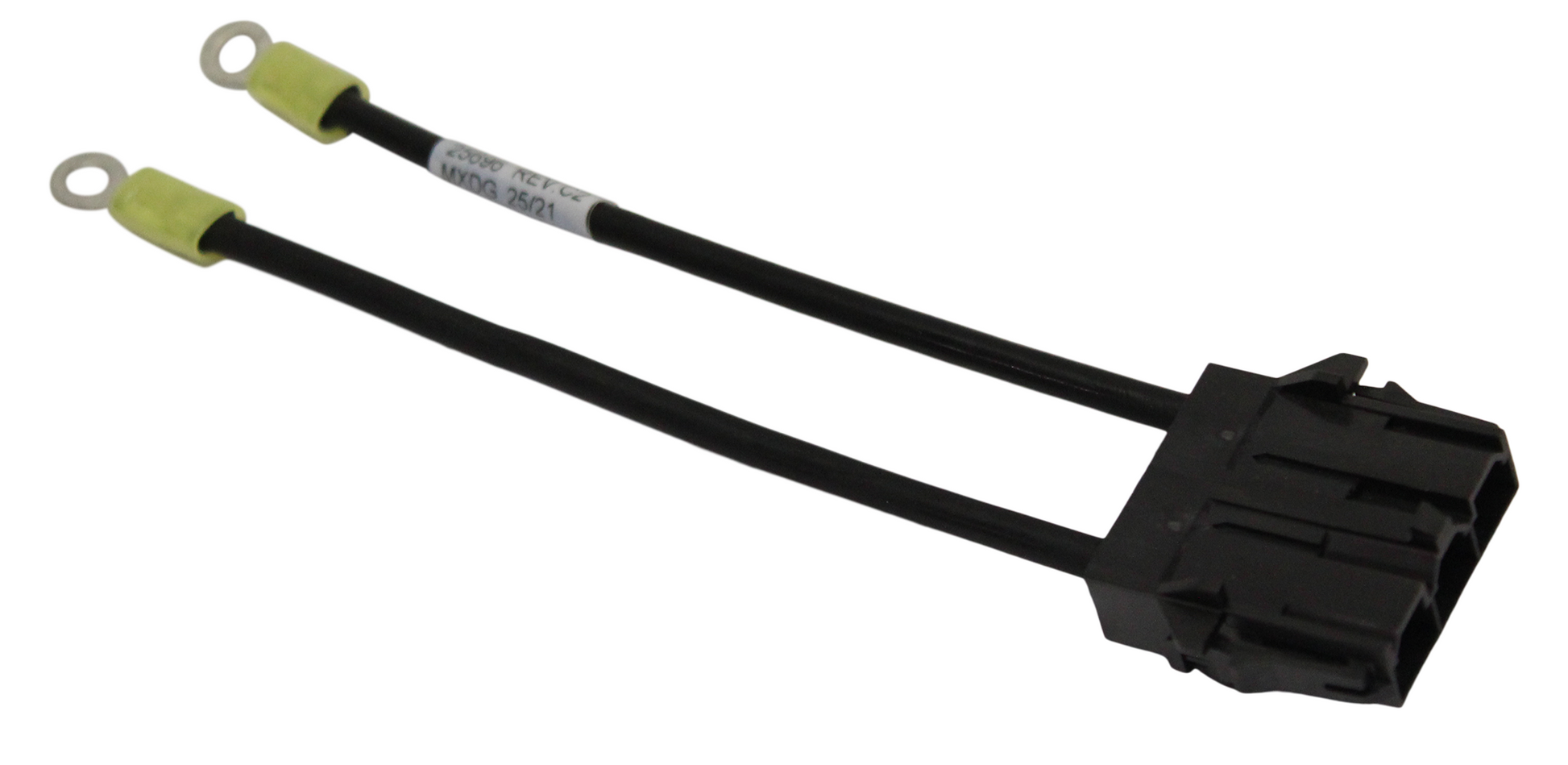

Also fits older style GS and GL series packs by using an adaptor cable

KK-11298.

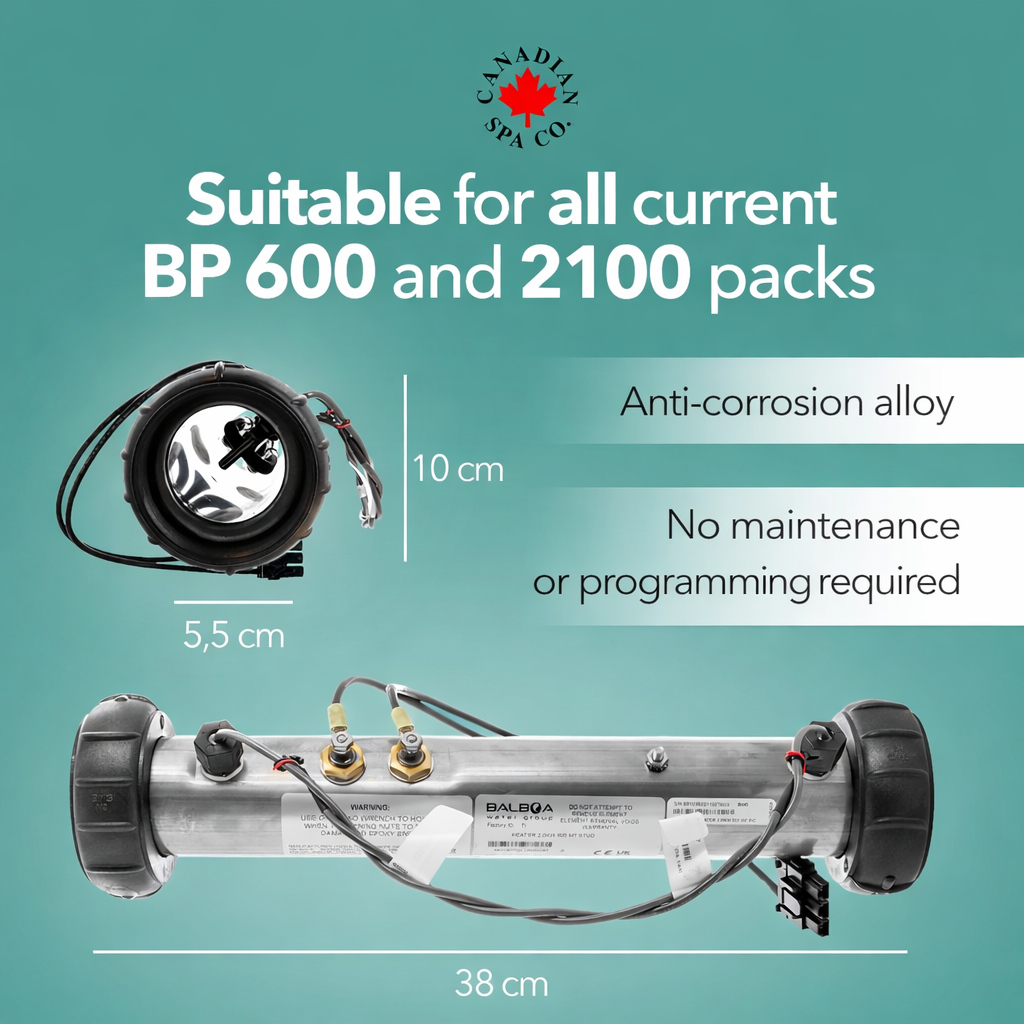

Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unions): 19.5 inches

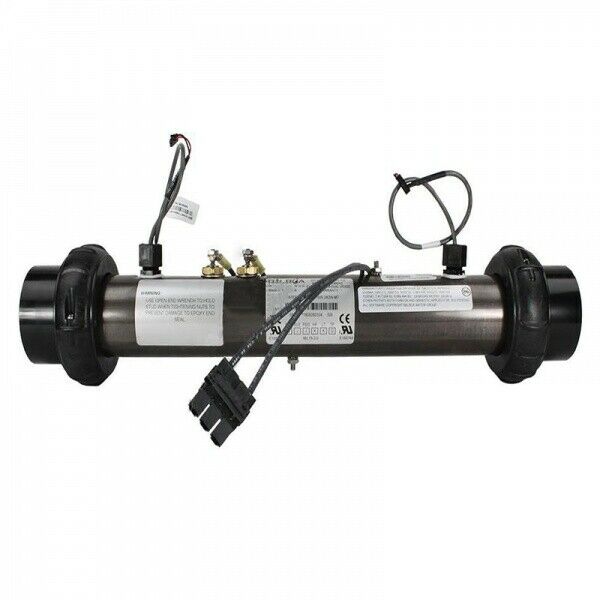

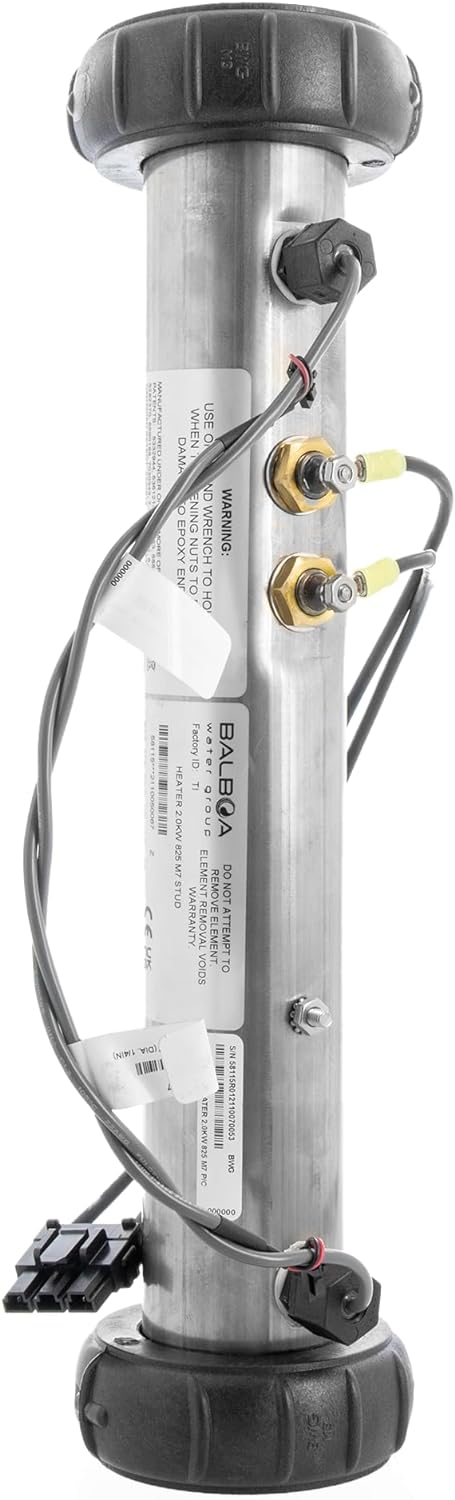

Held in place with two fixing studs, one at the top and one underneath. 2 inch plastic female sockets to connect to plumbing. Heater gaskets, split ring nuts, plastic collars , and M7 sensors are included.

Always match the heater number to ensure the correct specification, the 2KW version can be used with GS-GL packs such as GS500, 500Z, 501, 501Z systems, spas that use this heater include Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct, Wellis P/N ACM0552

2KW heaters may carry any of these part numbers: 58115, 58115-01, 58145, 55091, 55093-01, 55091-01, 55093, 55165-02, 55165-03, 55183-01, 55183-02, 55093-02, 55248, 55248-01, 55248-02, 55248-03, 55425, 55881, 55165-01, 55881-01, 55883, 56240, 56304, 58122, 58395

Always match the heater number to ensure the correct specification, the 3KW version can be used with GS500, 500Z, 501, 501Z (3.0KW only), 501SZ, 510, 510S, 510Z, 510SZ, 511SZ, 523DZ, GL2000 mach 3, GL2001 mach 3 systems, it is used in spa including Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct. Now readily used in the BP packs.

3KW versions may carry any of these part numbers: 58107, 58118, 58141, 53340, 53340-01, 53340-02, 53340-03, 53340HC1, 53355, 53355-01, 53355-02, 53355-03, 53355-04, 53340-04, 53355-HC, 53355HC1, 53529, 53529-01, 53529-02, 53529-03, 53340-HC, 53555, 53555-01, 53555-02, 53641-01, 53641-02, 53641-03, 59008-02, 53687, 53687-01, 53687-02, 53891, 53891-01, 53893, 59008-01, 53893-01, 53936, 53936-01, 53955, 53955-01, 53955-02, 59008, 53955-03, 53996-01, 54204, 54204-01, 54204-02, 54204-03, 56331, 54258, 54295, 54330, 54330-01, 54330-02, 54406-01, 56289-01, 54406-02, 54406-03, 54406-04, 54481, 54481-01, 54481-02, 56289, 54481-03, 54509, 54509-01, 54509-HC, 54509HC1, 54511, 54515-02, 54517, 54517-01, 54517-02, 54517-03, 54517-HC, 54517HC1, 54515, 54517HC2, 54517HC3, 54519, 54519-01, 54519-02, 54521, 54515-01, 54521-01, 54521-02, 54586, 54648, 54648-01, 54650, 54511HC1, 54650-01, 54700, 54751, 54751-01, 54752, 54752-01, 54511-HC, 54763, 54763-01, 54848, 55048, 55048-01, 55048-02, 54511-01, 55048-03, 55048-04, 55058, 55060, 55062, 55062-01, 55076, 55078, 55078-01, 55082, 55082-01, 55089, 55106, 55076-01, 55106-01, 55127, 55165, 55183, 55186, 55186-01, 55074-01, 55216, 55216-01, 55216-02, 55216-03, 55250, 55250-01, 55074, 55292, 55399, 55401, 55401-01, 55403, 55403-01, 55070, 55406, 55408, 55410, 55415, 55415-01, 55421, 55062-02, 55421-01, 55423, 55423-01, 55446, 55454, 55461, 55556, 55556-01, 55572, 55648, 55650, 55652, 55660, 55498, 55660-01, 55670, 55845, 55845-01, 55874, 55892, 55485, 55896, 55898, 55907, 55942, 55942-01, 56010, 55474-01, 56010-01, 56015, 56078, 56078-01, 56084, 56086, 55474, 56104, 56104-01, 56123, 56123-01, 56133, 56140, 55461-01, 56158, 56170, 56172, 56250, 56251, 56281

This heater does NOT fit BP100 or BP 200 packs.
